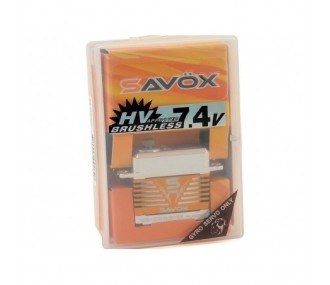

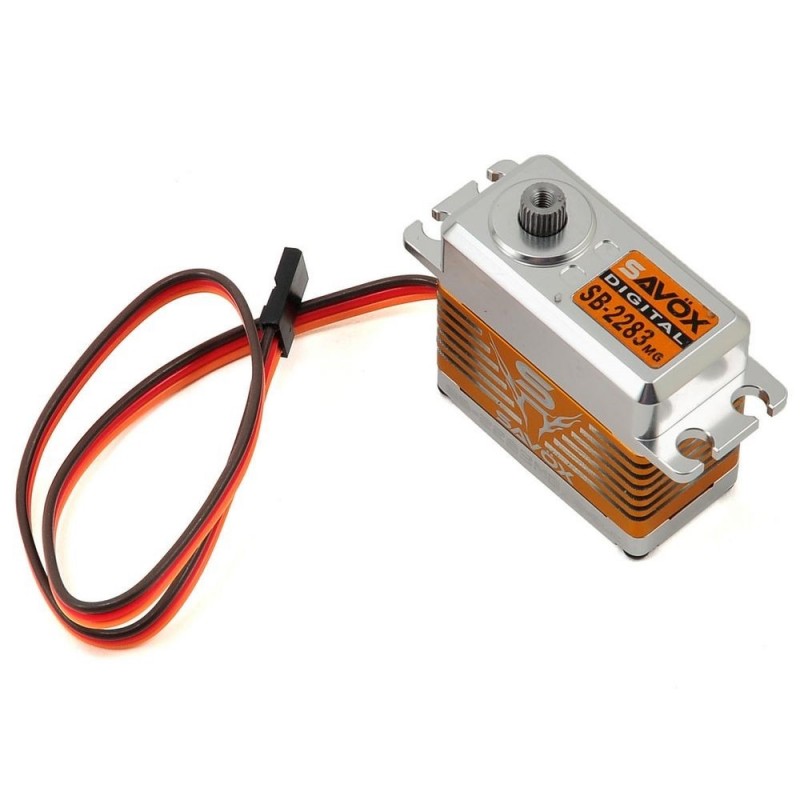

Savox SB-2283MG standard digital servo (69g, 10kg.cm, 0.048s/60°)
  • Savox SB-2283MG standard digital servo (69g, 10kg.cm, 0.048s/60°)
  • Savox SB-2283MG standard digital servo (69g, 10kg.cm, 0.048s/60°)
  • Savox SB-2283MG standard digital servo (69g, 10kg.cm, 0.048s/60°)

Savox SB-2283MG standard digital servo (69g, 10kg.cm, 0.048s/60°)

191-SB-2283MG

This SAVOX SB-2283MG servo has a brushless motor and a waterproof aluminum housing, which allows it to be used in wet or dusty conditions. Machined fins on the housing allow for better cooling.

This servo is faster than the SB-2282SG, and is ONLY suitable for helicopter tail drives.

Read more
€116.90
Out-of-Stock

  • Paiement sécurisé Paiement sécurisé
  • Livraison 24/48h Livraison 24/48h
  • Paiement 3X Paiement 3X
Cheaper elsewhere?

Technical specifications

  • Dimensions (mm): 40.3x20.2x38.7
  • Weight (g): 69
  • Speed: 0.06 sec/60° (6.0V), 0.048 sec/60° (7.4V)
  • Torque: 5 Kg.cm (6.0V), 10 Kg.cm (7.4V)
  • Frequency : 333 Hz
  • Pulse length : 1520 µs
  • Brushed motor
  • Metal gears
  • Double bearing
  • Aluminium housing

savox sb-2283mg

191-SB-2283MG
  • Thickness in mm (Servos) : 20.2
    452
  • Torque in kg.cm (servos) : 10
  • Speed sec / 60° (servos) : 0.04
  • Bearing (servos) : yes
  • Technology (sevos) : Digital
  • HV (servos) : yes
  • Weight in g (servos) : 69
