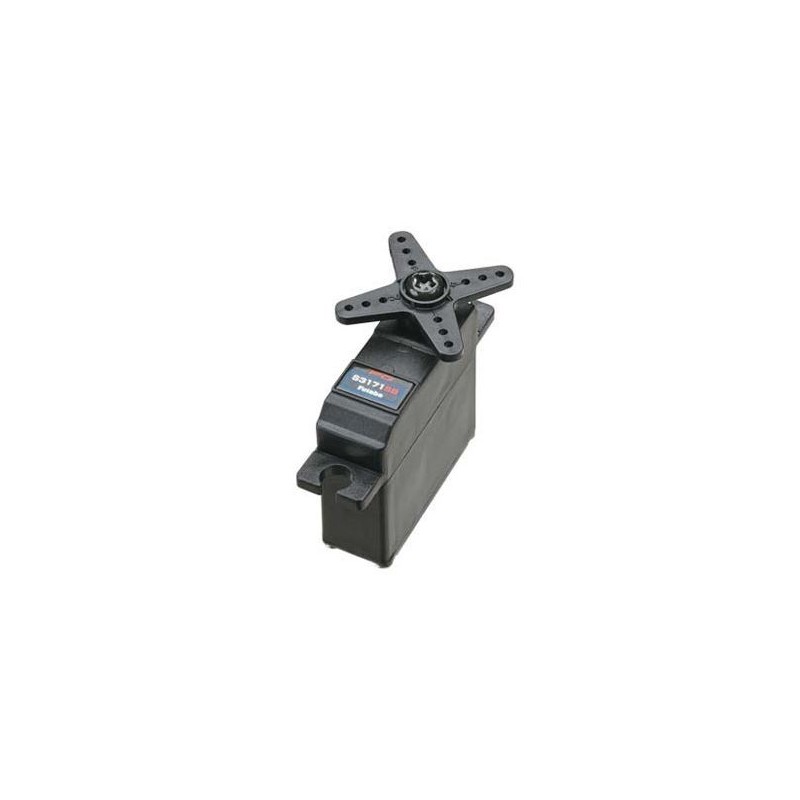

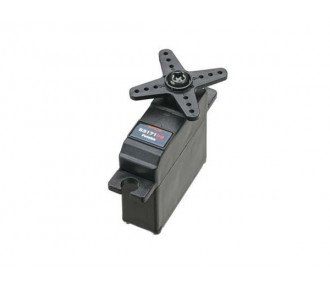

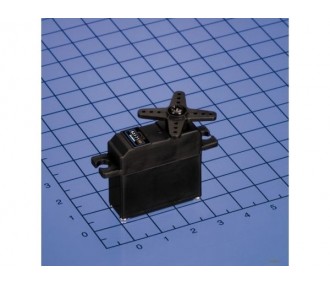

Futaba SBUS MG Mini Servo S3171SB
  • Futaba SBUS MG Mini Servo S3171SB
  • Futaba SBUS MG Mini Servo S3171SB
  • Futaba SBUS MG Mini Servo S3171SB
  • Futaba SBUS MG Mini Servo S3171SB

Futaba SBUS MG Mini Servo S3171SB

Servo specially dedicated to S-BUS technology. This technology allows to multiplex signals on a cable. Used for a long time in the automotive or aeronautical industry, it has the advantage of allowing several servos operating different control surfaces to be connected to the same receiver output with a specific cable.


Read more
€48.50
Quantity :
Out-of-Stock

  • Paiement sécurisé Paiement sécurisé
  • Livraison 24/48h Livraison 24/48h
  • Paiement 3X Paiement 3X
Cheaper elsewhere?

Technical specifications

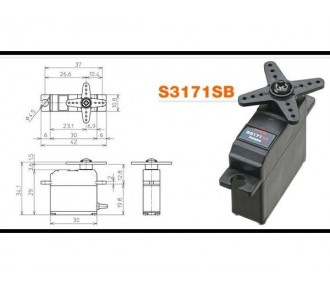

  • Dimensions: 30x10,8x29mm
  • Voltage: 4.8-6V
  • Torque: 3.7kg at 4.8V, 4.6kg at 6.0V
  • Speed: 0.19 sec/45°- 0.15 sec/45
  • Weight: 20.5g

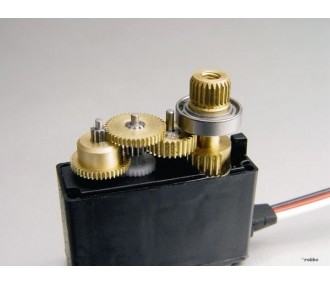

  • Metal gears
  • SBUS compatible (also works with conventional PWM system)
066-01000896
  • Thickness in mm (Servos) : 210
