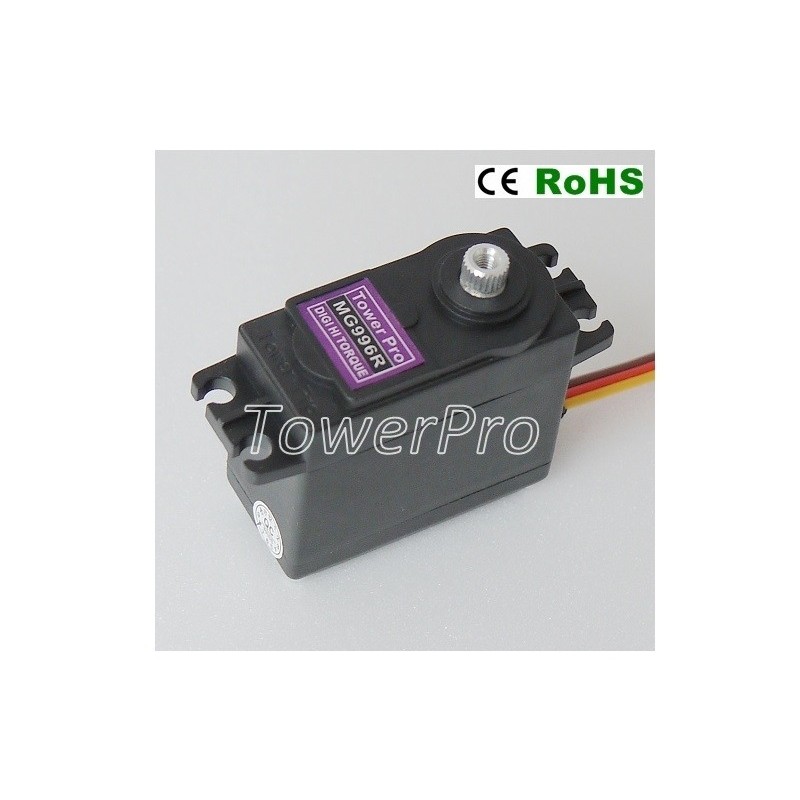

Servo MG996R - 180° rotation - metal Towerpro
  • Servo MG996R - 180° rotation - metal Towerpro
  • Servo MG996R - 180° rotation - metal Towerpro

Servo MG996R - 180° rotation - metal Towerpro

This servo is the more powerful version of TowerPro's MG995, it is equipped with metal gears and 2 bearings for unmatched precision and durability. The torque is exceptional (up to 14kg/cm) and with its maximum rotation of 180°, it is particularly recommended for robotics or any other application that requires an extended stroke of the servo rotation, without equivalent on the market at this price! Delivered with all the accessories below. Works with 4.8V-6.6V (Life 2S maximum)
Read more
€15.90
Quantity :
Stock available

  • Paiement sécurisé Paiement sécurisé
  • Livraison 24/48h Livraison 24/48h
  • Paiement 3X Paiement 3X
Cheaper elsewhere?

specifications

Type : TowerPro MG996R 180° maximum rotation
Dimensions: 40,7 x 19,7 x 42,9 mm
Weight : 55g
All metal gears
Double bearing
Coreless motor
Speed: 0.19 sec/60° at 4.8V - 0.15 sec/60° at 6.0V
Torque: 9.4Kg/cm at 4.8V - 11Kg/cm at 6.0V
Voltage: 4.8V - 6.6V
Graupner UNI type plug

043-MG996R-180
  • Thickness in mm (Servos) : 19.7
  • Torque in kg.cm (servos) : 11
  • Speed sec / 60° (servos) : 0.19
  • Pinions (servos) : Metal
  • Bearing (servos) : yes
  • Technology (sevos) : Digital
  • HV (servos) : no
  • Weight in g (servos) : 55
