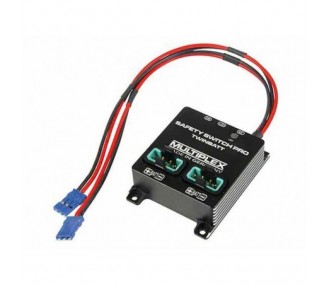

The Multiplex Safety Switch Pro TwinBatt (UNI) HV provides optimum power security for high-current, model-quality receiver equipment, protected by an anodized aluminum housing of the same quality as Multiplex's high-end receivers.
Help us to offer you the best price on the product "Safety Switch Pro TwinBatt (UNI) HV Multiplex"
To help us improve your experience on our site, we are always interested in hearing from you!
And offering you the best possible price is one of our priorities, so if you find one of our products cheaper elsewhere on a competing European site, please let us know by filling in the form below.
Unregulated high voltage supply (input voltage = output voltage)
SMD technology, low wear, insensitive to vibrations
Gold contact plug system and large wire cross-section
Very high DC transmission capacity due to efficient cooling by milled aluminum housing
Low power loss due to "ideal" FET-simulated diodes
Reliable battery supply via MPX M6 sockets and mounting clips
Compact design
Failsafe: If there is a problem with the switch or the power cords, the electronics will make sure it is in the ON position
Two receiver power cords for duplication of cross section and number of cantacts
Double power supply integrated on the SAFETY-SWITCH PRO TwinBatt; the batteries are discharged at the same time and in the same way
It is also possible to connect a BEC controller and a backup battery simultaneously. With this combination, make sure that the output voltage of the controller is higher than the voltage of the backup battery, e.g. if the BEC voltage is 8V, the backup battery discharges to 8V, then the BEC takes over. If the BEC fails, the backup battery will discharge again.
Switch connection socket for free choice of your MPX switch (magnetic / professional safety switch / Micro)
LED status display on the housing
Possibility to connect another optional LED cord with a 3mm flat head LED for switch position display
Technical specifications:
Dimensions: 46x44x18mm
Weight: 48g
No. of cells: (2x) 5 NiXX, 2S LiPo/LiIo/LiFe
Continuous current: 15A
Peak current: 30A
No load consumption >0.1 A
Receiver connection: 2x 0,5 UNI 200mm
Battery connection: MPX M6 Connector
Contents of the box:
(1) SAFETY-SWITCH PRO TwinBatt (UNI) HV (4) Fixing screws (1) 30 cm long LED cable (1) Operating instructions
The Multiplex Safety Switch Pro TwinBatt (UNI) HV provides optimum power security for high-current, model-quality receiver equipment, protected by an anodized aluminum housing of the same quality as Multiplex's high-end receivers.
