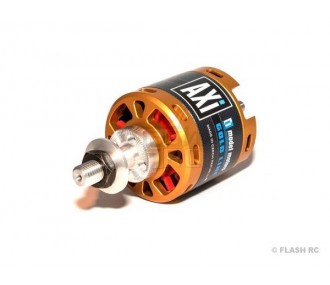

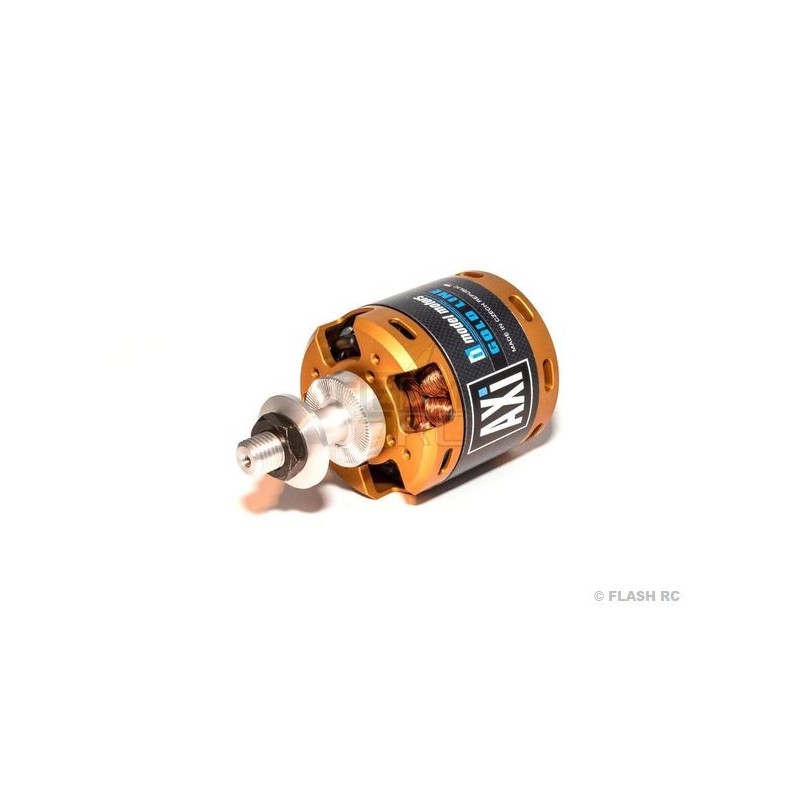

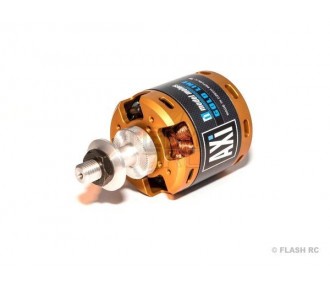

AXI 5325/18 V2 GOLD LINE motor (595g, 308kv, 2440W)
  • AXI 5325/18 V2 GOLD LINE motor (595g, 308kv, 2440W)
  • AXI 5325/18 V2 GOLD LINE motor (595g, 308kv, 2440W)
  • AXI 5325/18 V2 GOLD LINE motor (595g, 308kv, 2440W)
  • AXI 5325/18 V2 GOLD LINE motor (595g, 308kv, 2440W)

AXI 5325/18 V2 GOLD LINE motor (595g, 308kv, 2440W)

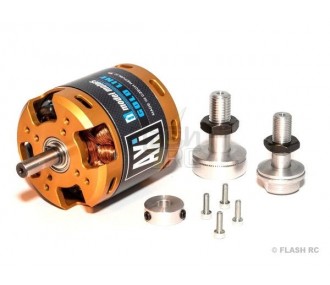

The AXI 5325/18 V2 GOLD LINE is recommended to be powered by 6 to 8S LiPo batteries for F3A type models up to 5000g and trainers up to 6500g at takeoff.this highly efficient brushless motor with neodymium magnets and rotating cage is manufactured using the latest technology of the finest quality materials. The 5mm hardened steel shaft is supported by three ball bearings, and the overall robust construction ensures a long service life.Due to its high torque characteristics, this motor is capable of turning large propellers with a high level of efficiency, and without the need for a gearbox.The quiet operation makes these motors particularly suitable for model aircraft.axi 5325/xx V2 motors are supplied for front and rear mounting, with two ad'hoc propeller adapters as standard.
Read more
€229.00
Quantity :
Out-of-Stock

  • Paiement sécurisé Paiement sécurisé
  • Livraison 24/48h Livraison 24/48h
  • Paiement 3X Paiement 3X
Cheaper elsewhere?

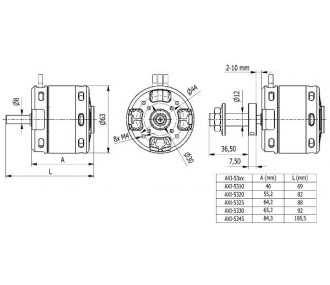

Dimensions

Technical specifications:

  • Recommended number of cells: 6 to 8S LiPo
  • RPM per Volt: 308 RPM/V
  • Max efficiency: 92% (>85%)
  • Max efficiency consumption: 18-65A (>85%)
  • No load current: 1,6A
  • Max current: 81A/60S
  • Internal resistance: 32mOhm
  • Dimensions: Ø63x64.2mm
  • Motor shaft diameter: 8mm
  • Weight: 595g
  • Max Power: 2440 W
  • Recommended propellers: 18.5 "x12 "to 20 "x8
123-5325/18-V3
  • Engine weight : from 100g to 599g
  • Motor power in Watts : 2440
  • Revs/ minute Kv : 308
  • Type of tree : standard
