- Pack

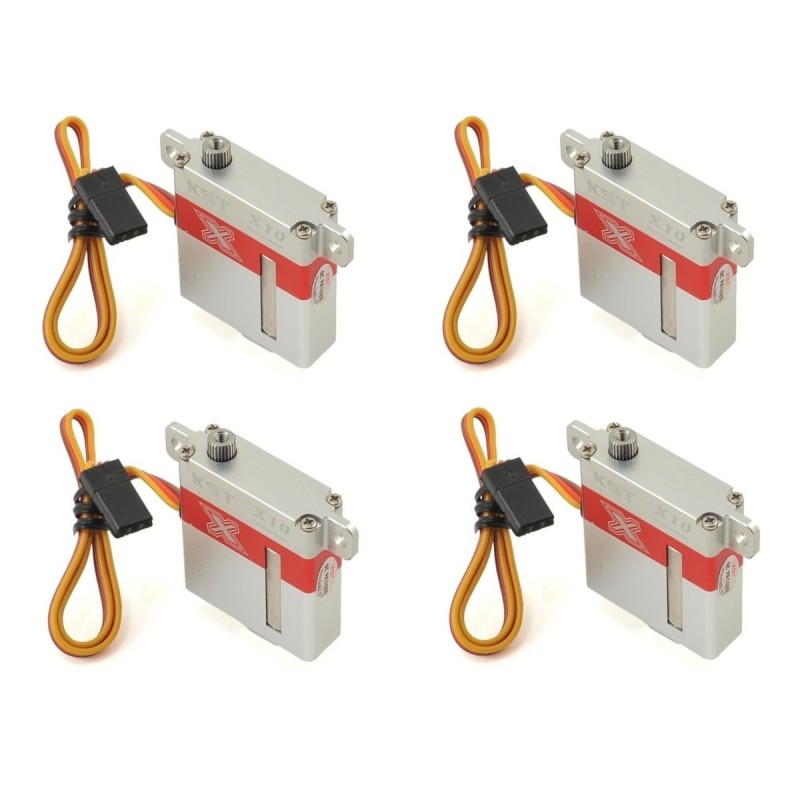

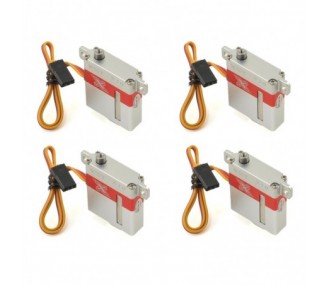

4x KST X10 HV mini 10mm servos (23g, 7.5kg.cm, 0.09s/60°)
P153-X10-MINIx4
Set of 4x X10 mini KST servos The KST X10 mini is a 5mm shorter version of the KST X10 version.this servo has the same dimensions as a KST DS135 MG while being able to be used in 2S Lipo.this servo will be perfect as a wing servo.Delivered with rudder pedals and mounting screwsthe servo is delivered with two red plastic rudder pedals, a single one (4 holes of 10 to 20mm), and a double one (4 holes of 8 to 15mm on either side of the center)
Technical specifications KST X10 Mini
- Dimensions : 30 mm x 10 mm x 30 mm
- Torque (6.0V/ 7.4V/ 8.4V) : 5.5 Kg.cm / 6.8 Kg.cm / 7.5Kg.cm
- Speed (6.0V/ 7.4V/ 8.4V) : 0.13sec/60° - 0.11sec/60° - 0.09 sec/60°
- Power supply voltage : 6.0 - 8.4V
- Weight : 23g
- Coreless motor
- Double bearing
- Metal gears
P153-X10-MINIx4
Thickness in mm (Servos)
Torque in kg.cm (servos)
Speed sec / 60° (servos)
Pinions (servos)
Bearing (servos)
Technology (sevos)
HV (servos)
Weight in g (servos)
