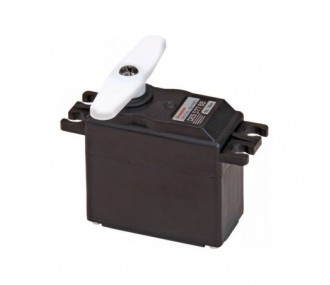

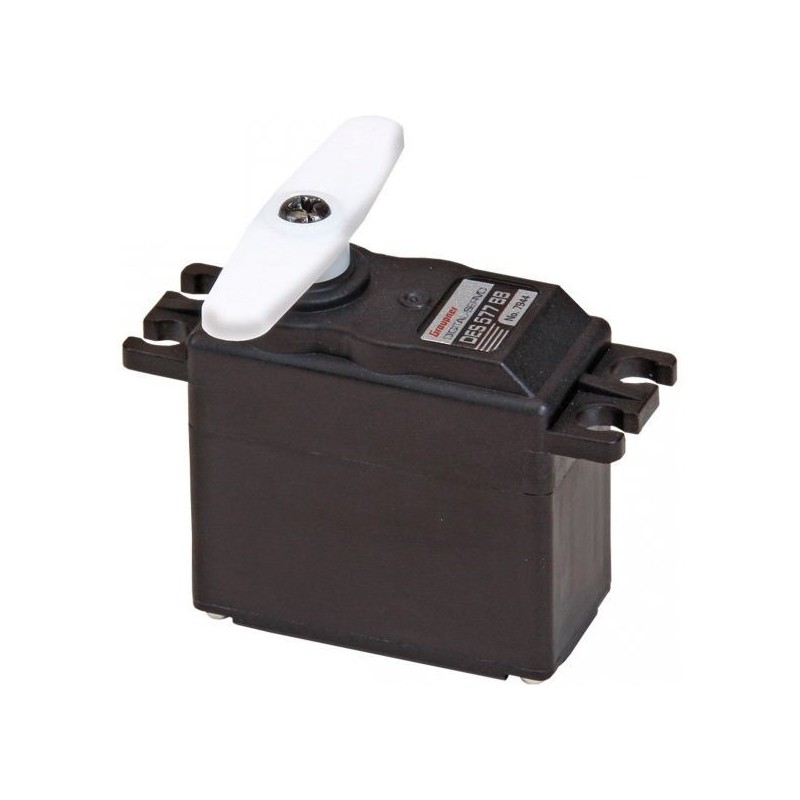

Graupner DES 577 standard digital servo (36g, 5.2kg.cm, 0.10s/40°)

Technical data

• Torque at 4.8V, approx: 42 N/cm
• Time of resolution at 4.8V, approx: 0.135 S/40°.
• Torque at approx. 6.0V: 54 N/cm
• Max. current consumption at approx. 4.8V: 710 mA
• Resolution time at 6.0V, approx.: 0.1 Sek/40° Weight, approx.
• Weight, approx.: 36 g
• Travel with trim, approx.: 2 x 45°.
• Power consumption at no load, approx.: 6 mA
• Torque at 6.0V approx. 52 N/cm
• Max. current consumption at 6.0V approx.: 840 mA
• Dimensions: 39.5 x 19.5 x 39 mm
• Torque at 4.8V approx.: 44 N/cm
• Bearings
• Gears: karbonite
• Supply voltage: 4,8 ... 6,0 V
• Pulse width: 1.5 ms
• Max. operating frequency: 5,0 / 200 ms / Hz
