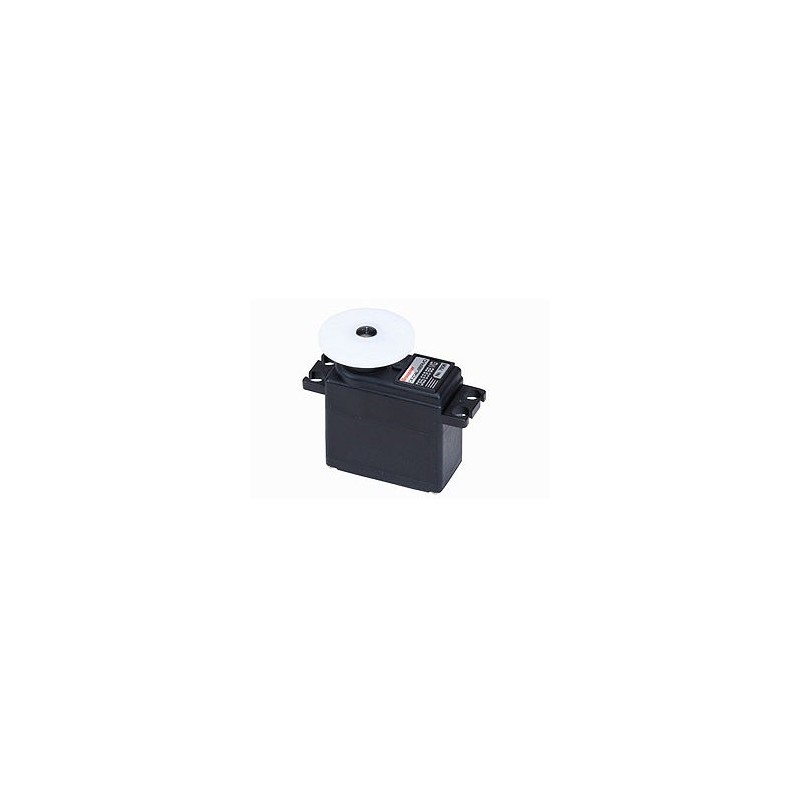

Mini digital servo Graupner DES 658BB MG (26g, 7.0kg.cm, 0.10s/60°)

Mini digital servo Graupner DES 658BB MG (26g, 7.0kg.cm, 0.10s/60°)

DES Servos (Digital-Eco-Servo) A new product range in the digital servo segment. The DES servos represent a product line that delivers the right servo for almost every application with different specifications. Different sizes, gearbox designs, torque strengths and resolution times are designed for beginners to competition pilots. The fully sealed variants (screws, housing parts and output shaft pinion) increase the safety of the models. These servos are mounted on double ball bearings with precision metal and aluminum gearing which guarantee an exact resolution process. A high quality Amtel micro controller ensures the control signal processing and the precise positioning of these servos.Digital Servo DES 658 BB, MGAsuitable for flying models, micro helicopters and R/C boats. 2 ball bearingsMetal gearing
Read more
€49.92
Quantity :
Out-of-Stock

  • Paiement sécurisé Paiement sécurisé
  • Livraison 24/48h Livraison 24/48h
  • Paiement 3X Paiement 3X
Cheaper elsewhere?

Technical data

Supply voltage: 4.8 ... 6.0 V
Power consumption at no load approx. 7
Power consumption at 4.8 V in mA approx. 810
Power consumption at 6.0 V in mA approx. 945
Torque at 4.8 V (Ncm) approx. 59
Torque at 6.0 V (Ncm) approx. 70
Torque at 4.8 V (Ncm) approx. 123
Torque at 6.0 V (Ncm) approx. 144
Travel with trim, approx. 2 x 45°
Resolution time at 4.8 V (Sec/40°) approx. 0.13
Resolution time at 6.0 V (Sec/40°) approx. 0.1
Weight, approx. 26
Gear: MG
Bearings: 2 x BB
Dimensions (L x W x H) mm approx. 32 x 16 x 33

PG = Plastic gearbox
CA = Carbonite gearbox
PB = Plain bearings
BB = Ball bearings

094-7936
  • Thickness in mm (Servos) : 16
  • Torque in kg.cm (servos) : 7
  • Speed sec / 60° (servos) : 0.1
  • Pinions (servos) : Metal
  • Bearing (servos) : yes
  • Technology (sevos) : Digital
  • HV (servos) : no
  • Weight in g (servos) : 26
