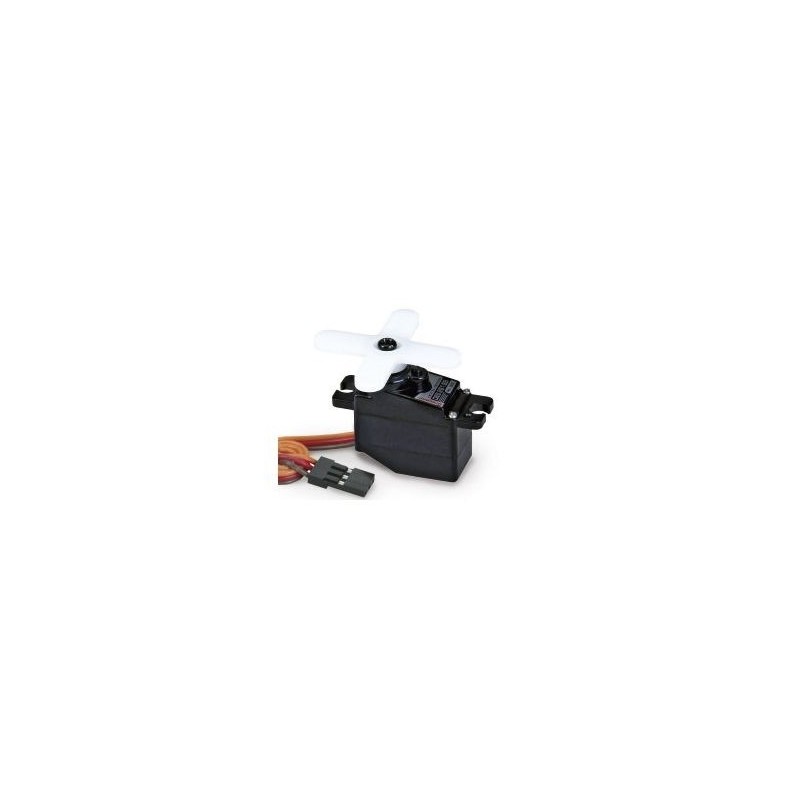

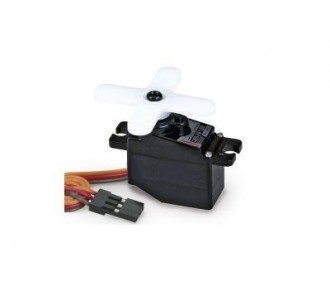

Micro digital servo Graupner DES 261BB in box (8g, 2.0kg.cm, 0.10s/60°)

Micro digital servo Graupner DES 261BB in box (8g, 2.0kg.cm, 0.10s/60°)

New digital servos in state-of-the-art technology: Following the worldwide success of the GRAUPNER/JR digital servo technology and the great know-how of JR, in collaboration with the Mitsubishi laboratories, the digital microprocessors have been further developed and the series of these servos has been extended.
Read more
€32.90
Quantity :
Last items in stock

  • Paiement sécurisé Paiement sécurisé
  • Livraison 24/48h Livraison 24/48h
  • Paiement 3X Paiement 3X
Cheaper elsewhere?

Specifications

  • Supply voltage: 4.8 ... 6,0 V
  • Torque at 4.8 V (Ncm) approx. 17
  • Torque at 6.0 V (Ncm) approx. 20
  • Travel with trim: approx. 2 x 45
  • Speed at 4.8 V (sec/40°) approx. 0.125
  • Speed at 6.0 V (sec/40°) approx. 0.10
  • Power consumption at 4.8V (mA) : 360
  • Power consumption at 6.0V (mA) : 450
  • Weight : approx. 8 g
  • Pinions : Karbonite
  • 1 bearing
  • Dimensions: (L x B x H) approx. 21.5 x 11 x 21 mm
094-7903
  • Thickness in mm (Servos) : 11
  • Torque in kg.cm (servos) : 2
  • Speed sec / 60° (servos) : 0.1
  • Pinions (servos) : Plastic
  • Bearing (servos) : yes
  • Technology (sevos) : Digital
  • HV (servos) : no
  • Weight in g (servos) : 8
