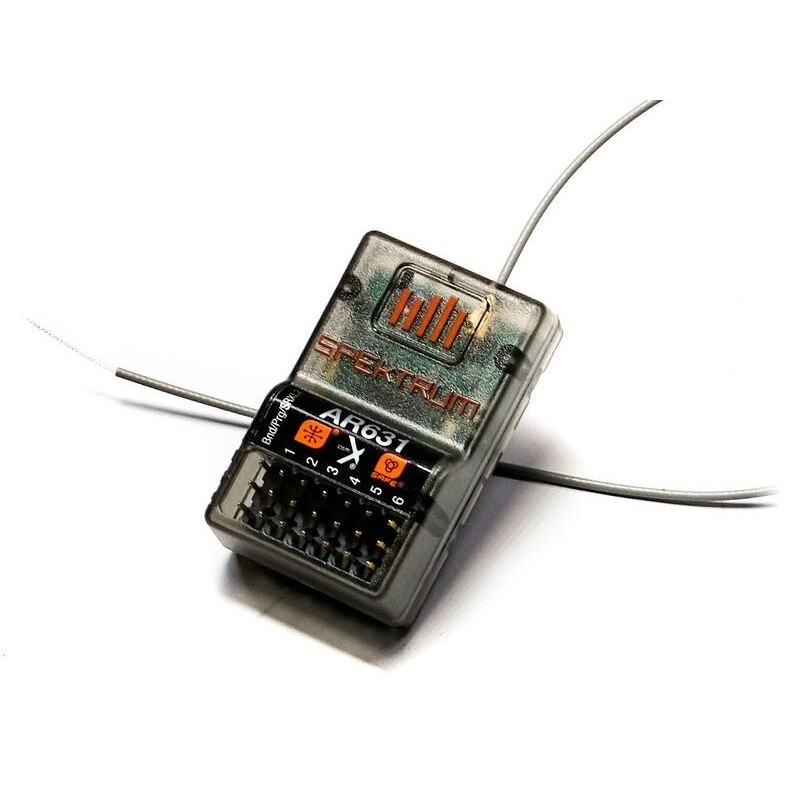

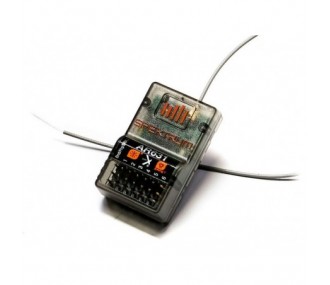

Spektrum AR631 6-channel DSMX receiver AS3X SAFE

Spektrum AR631 6-channel DSMX receiver AS3X SAFE

Read more
Quantity :

  • Paiement sécurisé Paiement sécurisé
  • Livraison 24/48h Livraison 24/48h
  • Paiement 3X Paiement 3X
Cheaper elsewhere?


The AR631 is equipped with telemetry and a link button that makes it easy to connect without the need for a pairing plug. It offers both SmartSafe and Hold Last technology as well as preset security types through pre-programming. A long 230mm 2.4GHz antenna, perfect for getting optimal reception when installed in a tight space. The AR631 also features smart telemetry support.

Using Smart Technology, the normal servo connector provides the throttle signal to the ESC, which can also send telemetry data such as voltage and current back to the receiver. The AR631 receiver port (channel 1 port only) will automatically detect when a Smart Technology-enabled ESC is connected. ESCs equipped with Smart and IC series connectors can also transmit battery data from compatible Spektrum Smart batteries. Spektrum Avian™ ESCs are compatible with the AR631 receiver for Smart Technology functionality.

For Smart to work, you must have a Smart ESC paired with a Smart telemetry receiver, and a Spektrum DSMX transmitter with telemetry. Your transmitter may need to be updated for Smart functions. Visit www.spektrumrc.com to register and update your transmitter. If a standard ESC or servo is connected to the AR631 receiver port, the port will operate normally (PWM signal) like any conventional RC system.

Main features

230 mm antenna for more versatile installation options
Integrated AS3X stabilization system with SAFE flight envelope protection
AS3X and SAFE are installed by direct programming from your Spektrum transmitter
Ready to use with Spektrum Smart ESCs for single wire telemetry data without the need for modules, links and wires
Sleek design in a hard, lightweight case
"Bind" button makes it easy to pair and eliminates the need for a pairing dongle
DSMX protocol receiver with DSM2 backwards compatibility
Flight remote telemetry support
Standard servo connectors

Technical specifications

  • Modulation: 2.4Ghz DSMX
  • Number of channels: 6
  • Power supply voltage: 3.5 - 9V
  • Weight : 8gr
  • Failsafe
  • Resolution of 2048 steps
  • Integrated telemetry
  • integrated gyro : AS3X and SAFE
