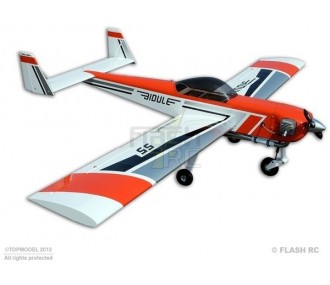

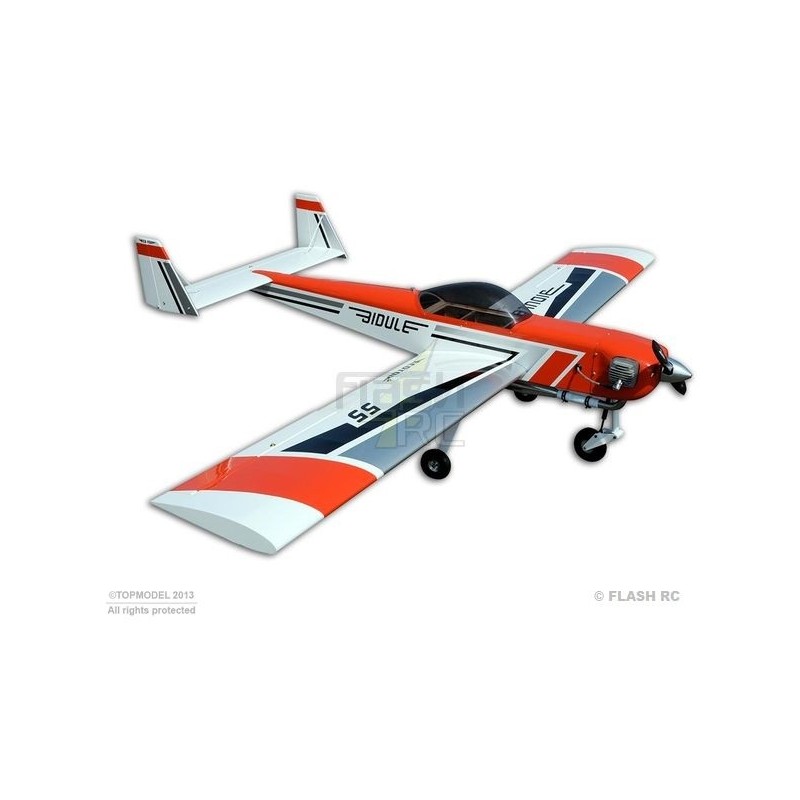

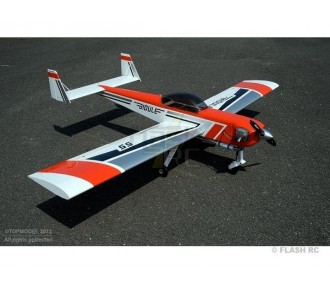

Can 55 approx.2.46m ARF ECOTOP

More details in pictures

• Heavy duty tricycle landing gear
• Ground clearance large enough for 22" diameter two-blade propellers
• Fiberglass engine cowling (delivered painted)
• Smoke canopy mounted on its bucket: can be easily removed to expose the entire top of the fuselage from the firewall
• Wings in 2 parts (carbon fiber key)
• Empennage is removable
• Drift removable by 4 screws (with captive nuts)
• Can be motorized with engines from 35cc for those who practice towing occasionally

Technical characteristics

• Span : 2.46m
• Length : 1.80m
• Wing area: 91dm².
• Weight in flight : 8.5 - 9.0 Kg
• Wing profile : NACA 2414
• Motorization : from 35 to 55 cc 2T
• RC functions: rudder, elevator, ailerons, flaps, tow hook (optional), engine

Contents of the kit

• Fuselage entirely built in CTP-balsa structure and covered with Oracover® with decoration installed at the factory. Fender key sleeve installed - Triangulation done at the factory. All captive nuts for gear, wing and stab attachment are in place.
• Fiberglass engine cowling, painted.
• Smoked transparent PVC bubble, ready to be installed on its bucket, painted. Balsa bucket, covered with canvas, finished and with fastening system installed.
• Painted fiberglass main gear. Special front axle, hyper resistant, damped and steerable. Special steering system with silent-block "Servo-saver".
• Wings made of Oracover® structure (2 parts). Ailerons and landing flaps finished with stick hinges installed to glue. Decoration done at the factory. Tie rod installed. Aileron and flap servo plates prepared. Servo cable routing strings passed through the wing. Captive nuts installed at the root for wing attachment.
• Carbon tubular wing key.
• Oracover® canvas tailplane structure with finished rudders, stick hinges installed, to be glued. Removable drifts, captive nuts installed.
• Accessories (800cc fuel tank, towing hook, metal horns, wheel axles, quick links, clevises, screws, etc.).
• Illustrated step-by-step assembly instructions.
